Since the 1980s, a new salt-accumulating subaqueous brine-lake style, tied to the dissolution of nearby shallow sub-seafloor salt has been documented on the deep seafloor below a normal marine salinity water column (Figure A). These brine lakes are known as DHAL (deeps hypersaline anoxic lake) or DHAB (deeps hypersaline anoxic basin) deposits. They occur in salt allochthon regions on the deep seafloors of the Gulf of Mexico, the Mediterranean Sea and the Red Sea. All possess hydrologies and sediment columns characterised by prolonged separation of the bottom brine mass from the upper marine water column; a density and thermal stratification that is due to a lack of mixing, controlled by extreme conditions of elevated salinity, anoxia, and relatively high hydrostatic pressure and temperatures in the bottom waters.
The longterm character (hydrological stability over hundreds to thousands of years) of such density-stratified brine lakes, which form the centre-pieces in deepsea hypersaline anoxic basins (DHAB), facilitate longterm ecologic niche stability. The upper surface of a brine lake is marked by a halocline, which typically defines one or more nutrient, thermal and salinity interfaces (Figure B). There a light-independent chemosynthetic seep and lake biota can grow and flourish. Escaping subsurface brines can entrain both hydrocarbons (mostly methane) and H2S, which are nutrients in the base of the chemosynthetic food chain. The salinity layering created by the halocline can be positioned as; 1) a pelagic biotal interface, or 2) a brine lake edge (or shore) interface or 3) out in the lake the brine column base (i.e. a hypersaline-sediment interface) (Figure B).
In other places on a deep seafloor, the escaping salt-karst brines, with entrained methane and H2S, can form diffuse outflow or seep areas, without ever developing into a free-standing brine lake (position 4 in Figure A). Highly specialised chemosynthetic communities tend to colonise the resulting density and salinity-stratified interfaces. And so, some chemosynthetic communities occupy a halocline interface in a pelagic position atop an open brine lake, while others inhabit a benthic pool edge position where the halocline intersects the deep seafloor (Figure B). Anoxic hypersaline brine can also pond on the shallow seabed in high latitude regions where the formation of sea ice create cryogenic brines (Kvitek et al., 1998). But this style of cryogenic seafloor brine lake is more ephemeral and is not tied to significant evaporite deposits, so is not considered further.
Two groups of megafauna with symbiotic methanotrophic or thiotrophic bacteria dominate chemosynthetic communities in the salt-floored Gulf of Mexico: 1) bivalves, including bathymodiolin mussels and multiple families of clams and 2) vestimentiferan tubeworms in the polychaete family Siboglinidae. Both the vestimentiferan siboglinids and clams harbour microbial endosymbionts that utilise sulphide as an energy source, whereas different species of bathymodiolin mussels harbour either methanotrophic, thiotrophic, or both, types of symbionts (Figure 2).
Hence, the mussel-tubeworm dominated brine-lake edge and seep biostromes in the Gulf of Mexico are dependent on chemosynthesising microbes as a food source. This community is the cold-water counterpart to warm-water chemosynthetic hydrothermal communities flourishing in high-temperature waters in the vicinity of black smoker vents (MacDonald, 1992; MacDonald et al., 2003). In both settings, it is methane and sulphide, not light, that provides the than DHALs energy source for the bacteria and archaea that make up the base of the chemosynthetic food chain. Methanotrophic bacteria live symbiotically on a seep mussel’s gills, taking in methane and converting it to nutrients that nourish the mussels. The seep mussels (Bathymodiolus childressi and Calyptogena ponderosa continually waft methane-rich water through their gills to help their chemo-autotrophic bacterial symbionts grow and periodically harvest some of the excess growth. Their lifestyle means that seep mussels need to live near a supply of dissolved gas, so they can inhabit isolated seep outflows on the deep seafloor where gas is bubbling out, including the edges of mud volcano pools, but do best about the more stable and relatively quiescent edges of methane-saturated brine pools and lakes. There they grow as a fringe to the brine pool, and exist about the pool rim or dam, wherever they can keep their syphons above the halocline (Figure A-D). They tend to construct a biogenic mounded edge (biostrome) to the brine pool, with living sediment piles generally cemented by methanogenic calcite. Such rims or dams typically extend some 5-10 metres behind the pool edge (Figure A; Smith et al., 2000). The inner edge of the mussel biostrome is elevated only a few centimetres from the surface of the toxic brine pool and is distinguishable by an abundance of smaller individuals, present in high densities (Figure B). At the outer edge of the mussel biostrome, most distal from the pool, there is a high frequency of disarticulated shells and low densities of still living larger individuals. Also living atop seafloor seeps and about some brine pools are knots and clusters of chemosynthetic polychaete tubeworms (Figures 2c, 3; Lamellibrachia luymesi and Seepiophila jonesi). Individual tubeworms (aka seep beard-worms) in a colony can be up to 2.5 m long with a microbe-dependent metabolism evolved to exploit the abundant H2S and methane seeping through the seafloor.

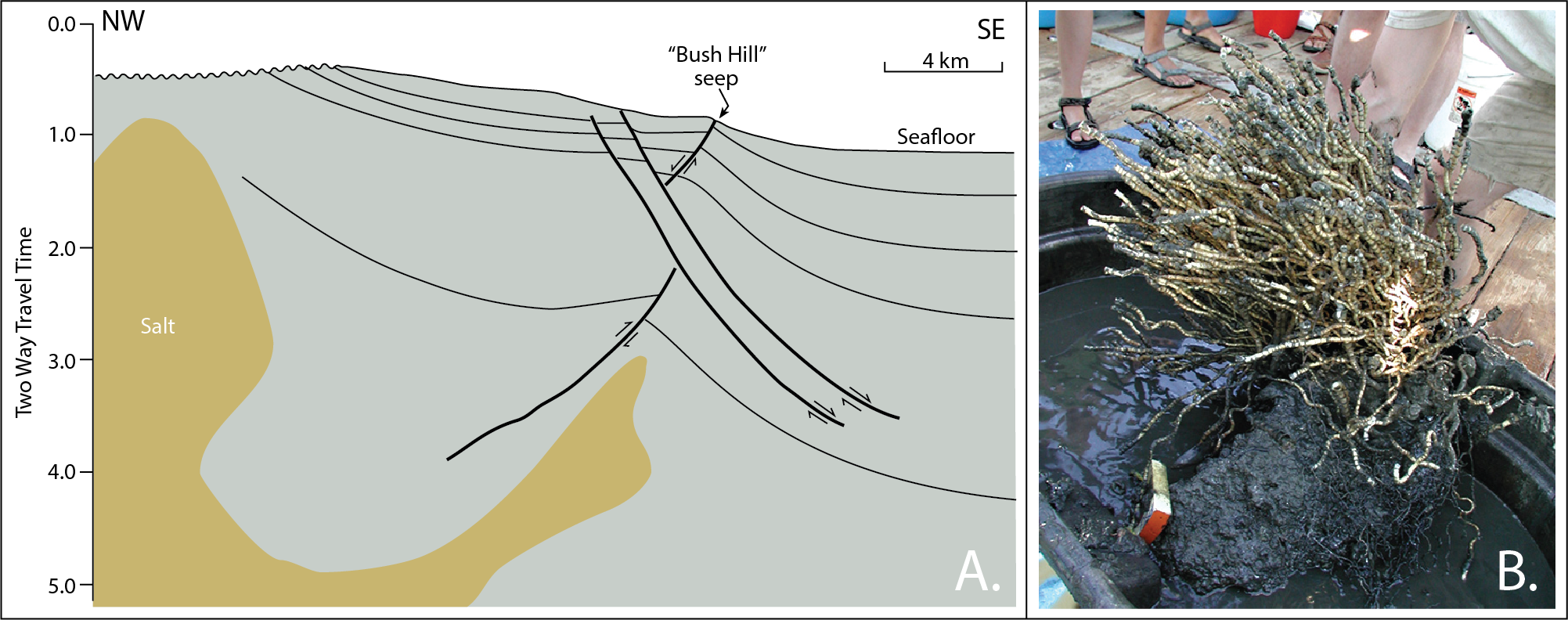

Tubeworm colonies grow as rims and clumps atop H2S seeps, as at Bush Hill on the floor of the Gulf of Mexico (Figure A; Reilly et al., 1996; Dattagupta et al., 2006; McMullin et al., 2010). Tubeworm “bushes” in cold seep regions of the Gulf of Mexico are typically rooted in the H2S-rich muds (Figure B). Growing individual tubes actively extend down into the H2S-rich mud as well as up into the O2-rich water column giving the cluster a morphology similar to a tree or shrub. Their “roots” extend into the earth, while “branches” extend above. Continuing the plant analogy, it seems that tubeworm shrubs absorb H2S through their “roots” and O2 through their “branches” (Freytag et al., 2001; Bergquist et al., 2003).
As a group, seep tubeworms are related to the giant rift tubeworm (Riftia pachptila), which inhabits active hydrothermal seeps in active seafloor rifts. Via a specific haemoglobin molecule, vestimentiferan tubeworms in the Gulf of Mexico provide H2S and O2 as nutrients to sulphur-oxidising bacteria living symbiotically in trophosome structures, which extend for up to 75% of the length of each tubeworm. Unlike hydrothermal tubeworms such as Riftia pachptila that grow to lengths of more than 2 metres in less than two years, Lamellibrachia luymesi grow very slowly for most of their lives. It takes from 170 to 250 years to grow to 2 meters in length, making them perhaps the longest-living known invertebrate species (Bergquist et al., 2000).
With five or six species currently known to flourish there, the brine-fed cold seeps of the Gulf of Mexico host the highest biodiversity of vestimentiferan siboglinid tubeworms worldwide. There is a time-based evolution in the biotal make-up of chemosynthetic communities in the Gulf of Mexico (Glover et al., 2010 and references therein). The earliest stage of a cold seep is characterised by a high seepage rate and the release of large amounts of biogenic and thermogenic methane, H2S and oil (Sassen et al., 1994). As authigenic carbonates with specific negative δ13C values precipitate as a metabolic byproduct of microbial methanogenesis, they provide a necessary stable substrate for the settlement of larval vestimentiferans and seep mussels. These seep communities begin with mussel (Bathymodiolus childressi) beds containing high biomass communities of low diversity and high endemicity. Individual mussels live for 100–150 years, whereas mussel beds may persist for even longer periods, with growth rates of mussels primarily controlled by methane concentrations (Nix et al., 1995).
The next successional stage consists of vestimentiferan tubeworm aggregations dominated by Lamellibrachia luymesi and Seepiophila jonesi. Young tubeworm aggregations often overlap in time with, and usually persist past, the stage of mussel beds. These tubeworm aggregations and their associated faunas go through a series of successional stages throughout hundreds of years. Declines in seepage rates result from ongoing carbonate precipitation occluding pores and so forming aquitards, as well as the influence of L. luymesi on the local biogeochemistry as it extracts ever-larger volumes of H2S. In older tubeworm aggregations, biomass, density, and the number of species per square metre decline in response to reduced sulphide concentrations. Once seep habitat space becomes available, more of the non-endemic background species, such as amphipods, chitons, and limpets, can colonise the mussel and tubeworm aggregations.
Due to the lowering concentrations of sulphide and methane, the free-living microbial primary productivity is reduced. The number of associated taxa is positively correlated with the size of the tubeworm-generated habitat, so diversity in this stage remains relatively high although the proportion of endemic species is smaller in the older aggregations. This final stage may last for centuries, as individual vestimentiferan tubeworms can live for over 400 years (Cordes et al., 2009).
Even as seepage of hydrocarbons declines in a particular seep site, the authigenic carbonate layers of relict seeps can still provide a stable seafloor substrate for marine filter feeders, such as cold-water corals. The scleractinians Lophelia pertusa and Madrepora oculata, several gorgonian, anthipatharian, and bamboo coral species form large reef structures atop now inactive seeps on the upper slope of the Gulf of Mexico (Schroeder et al., 2005). The corals obtain their food supply form the water column and are not dependent on chemosynthetic microbes.
The coral communities also harbour distinct associated assemblages, consisting mainly of the general background marine fauna, but also contain a few species exclusively associated with the corals and a few species that are common to both coral and seep habitats. Although individual tubeworms and molluscs in chemosynthetic brine pool communities may live for more than 300-400 years, vagaries in the rate of brine and nutrient supply to the seafloor mean many mussel and tubeworm colonies are overwhelmed by a rising halocline and so die in a shorter space of time. Their partially decomposed remains can spread out as part of the organic-rich debris atop the halocline, along with bacterial, algal and faecal residues, where it is acted upon by a vibrant community of aerobic and anaerobic decomposers. If the organic matter is mineralised or attaches to other interface precipitates such as pyrite, it sinks to the anoxic brine pool bottom, where it is mostly preserved and protected from further biodegradation. The inherently unstable nature of the seafloor in the vicinity of active salt allochthons and brine lakes means it is subject to slumping, especially in the vicinity of brine fed mud volcanoes. In such settings, parts of the carbonate-rich biostrome rim are periodically killed “en masse” as sediment about a brine pool edge collapses, slumps and slides into anoxic pool waters, carrying with it the chemosynthetic community. As well as further elevating levels of preserved organics in the brine pool bottom sediments, this process also creates potential fossil lagerstaette. Death of seep communities, even if survives such catastrophic events, ultimately comes when the supply of seep gases and liquid hydrocarbons is cut off to any single seep.

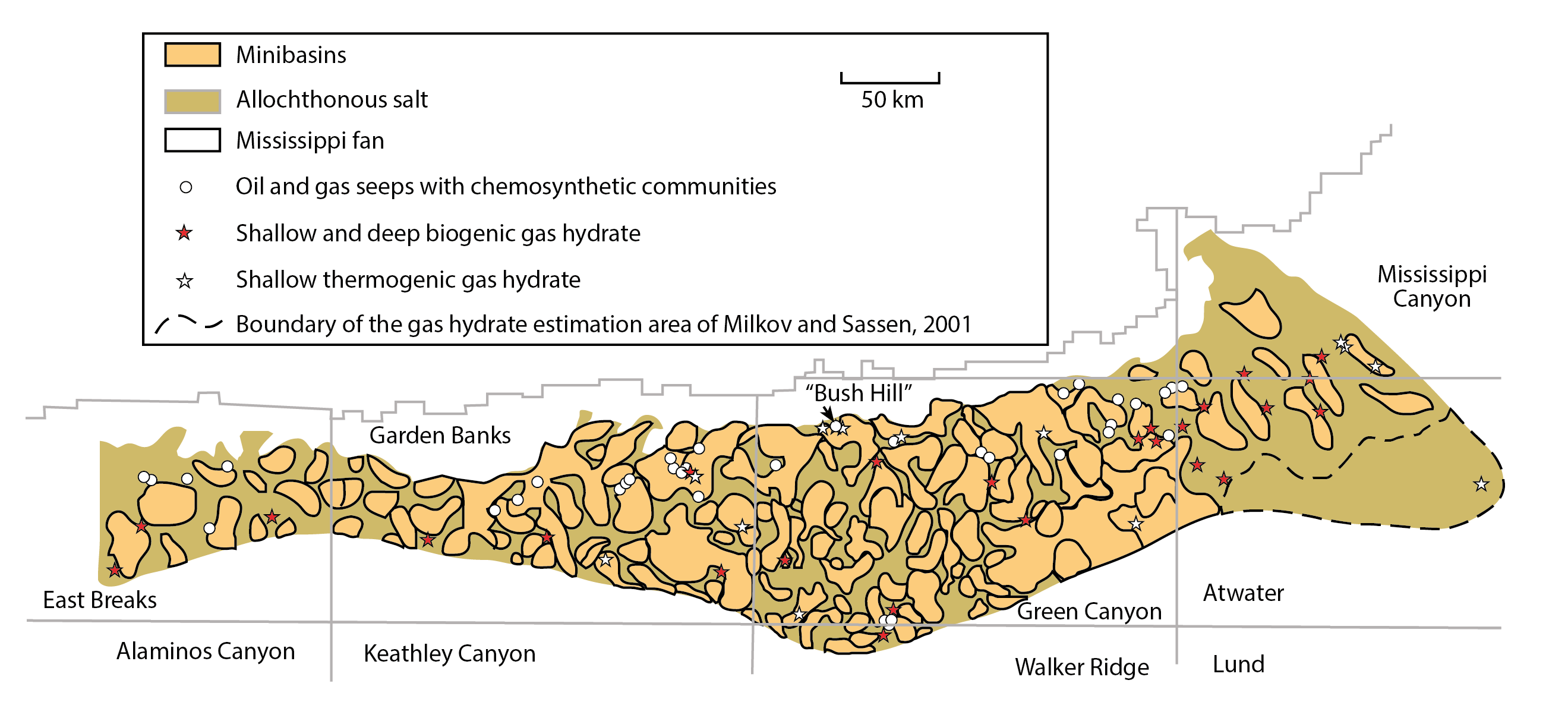

Across the slope and rise in the Gulf of Mexico, where sea bottom temperatures are suitably low, methane hydrates (clathrates) form atop focused outflow zones and oil seeps are common at the sea surface above vent clathrates (Dalthorp and Naehr, 2011). Gas hydrate or clathrate is an ice-like crystalline mineral in which hydrocarbon and non-hydrocarbon gases are frozen within rigid molecular cages of water. They can be thought of gaseous permafrost. Their occurrence is not just tied to the cold temperature portion of the deep seafloor; clathrates are the dominant seals to large gas reservoirs in the permafrost regions of Siberia. Methane hydrates are common associations where methane, which can be thermogenically or biogenically sourced, occurs just below the deep cold seafloor. In much of the world, it accumulates in seafloor regions independent of any underlying evaporite occurrence (Thakur and Rajput, 2011). Evaporite edges just tend to focus the outflow zones (Figure).
Clathrate formation on the seafloor requires bottom temperatures not encountered until the seafloor bottom lies beneath a water column 450-500 m deep. Beneath the clathrate-covered seafloor, temperature increases with depth and this limits the depth at which gas hydrates will occur, so below most clathrate layer is an accumulation of free gas is likely. Clathrates seeps in the vicinity off brine pools are not unique to, but are often very obvious about, salt allochthon edges where salt flow induces extensional faulting and funnels a focused rise of methane, degraded oil and H2S to the cold seafloor (Chapter 6 in Warren 2016). Hence, breaks in the lateral extent of the various salt sheets act as a focusing mechanism for escaping thermogenic and biogenic methane and other gases and fluids (Figures 3, 6; Fisher et al., 2000; MacDonald et al., 2003). Rapid burial of organic-entraining sediments in supra-allochthon minibasins encourages the creation of biogenic methane that sources much of the gas escaping to the seafloor away from salt-edge focused seeps. Hence, in the salt allochthon province of the northern Gulf of Mexico, there is a definite association between brine pool chemosynthetic communities, thicker gas hydrates and the edges of minibasins (Figure; Reilly et al., 1996; Milkov and Sassen, 2001).
In all these setting clathrates are a food source for various methanogenic microbes, and so there are different multi-cellular lifeforms dependent on these microbes. One obvious dependency is seen in the eco-niche occupied by a small 2-4 cm-long highly specialised polychaete called Hesiocaeca methanicola (Figure). It was discovered in 1997 flourishing in regions of methane hydrate atop the deep seafloor in the Gulf of Mexico (Fisher et al., 2000). These “ice worms” inhabit indentations (“burrows”) in blocks and layers composed of methane clathrate and glean or harvest biofilms of the methanotrophic bacteria that are metabolising methane on the block surface. In turn, the ice worm supplies oxygen to the methanotrophs and via its movement appears to contribute to the dissolution of hydrates. Mature ice worms can survive in an anoxic environment for up to 96 hours. The experiments of Fisher et al., (2000) also showed that the larvae were dispersed by currents, and died after 20 days if they did not find a place to feed.
Eight brine lakes, L’Atalante, Bannock, Discovery, Kryos, Medee, Thetis, Tyro and Urania, have been discovered and studied in the Mediterranean Ridge region of the deep eastern Mediterranean over the last 20 years (Figure A). The surfaces of these brine lakes lie between 3.0 and 3.5 km below sea level, and the salinity of their brines ranges from five to 15 times higher than that of seawater. In the Bannock Basin, the various brine-filled depressions or sub-basins create a closed outer moat around a central seafloor mound that is 10 km across (Figure B). The chemical composition of the Tyro Basin bottom brine is related to the dissolution of the underlying halite-dominated evaporites, while the chemical composition of the Bannock Basin (Libeccio Basin in the Bannock area) implies derivation from dissolving bittern salts (de Lange et al., 1990). In the “anoxic lakes region”, sodium chloride is predominantly sourced in the L’Atalante and Urania lakes, but L’Atalante is much richer in potassium chloride than the other lakes. The Discovery basin brine is almost exclusively the product of dissolution of magnesium chloride (bischofite) salts. It has a density of 1330 kg/m3, which makes it the densest naturally occurring brine yet discovered in the marine environment (Wallmann et al., 2002). Its concentration profile in sediment beneath the brine lake shows the age of this lake is between 700 and 2000 yr. The high concentration of magnesium chloride drives the dissolution of biogenic calcium carbonate but facilitates excellent preservation of siliceous microfossils and organic matter. In basin bottom muds there are large euhedral crystals of gypsum, up to 10cm across, precipitating from these brines (Cita 2006).
Of the Mediterranean brine lakes, Lake Medee is the largest, and fills a narrow depression at the Eastern edge of the abrupt cliffs of the small evaporite ridge located 70 nautical miles SW of Crete (Figure A). The lake depression is approximately 50 km in length with a surface area of about 110 km2 and a volume of nearly 9 km3, which places Lake Medee among the largest of the known DHALs in the deep-sea environment. Although all the Mediterranean DHALs lie geographically close to each other, their hydrochemical diversity suggests that dissolving salt mineralogies were different. Salinity levels are much higher in some dues to the presence off nearby bittern layers. For example, Discovery Lake and Lake Kryos have salinities and MgCl2 proportions indicative of bischofite dissolution. Even so, it seems like, mostly sulphate-reducers can still metabolise in the extremely saline MgCl2 waters of Lake Kryos (Steinle et al., 2018).
In contrast to the brine lakes and seeps in salt-allochthon terrane of the Gulf of Mexico, seep megafauna is so far absent in the various documented modern brine lakes along the Mediterranean Ridges (Figure D). The brine lakeshore edge communities are mostly microbial, as are the lifeforms that make up the pelagic biota off the halocline. Biological studies on the anoxic basins of the Eastern Mediterranean started after the discovery of gelatinous matter of organic origin in the brine lake sediments (Figure C; Brusa et al., 1997).
The laminar gelatinous matter was observed within the cores containing anoxic sediments obtained during oceanographic expeditions for geological study of the Mediterranean Ridge. Microbiological and ultrastructural investigations were carried out on core sediment samples and the overlying water. Various authors demonstrated the organic nature of the mucilaginous pellicles found in the cores and their relation with numerous microbic forms present in all the samples. Viable microorganisms, prevalently Gram-negative and aerobic as well as facultative anaerobes, were found in the halocline water samples. Different microbic forms were isolated in pure culture: a vibrio (Nitrosovibrio spp.), a coccus (Staphylococcus sp.) and some rods of the family Pseudomonadaceae. In addition, laminar formations were observed in a growth medium of mixed cultures that could be interpreted as the first stages of the mucilaginous pellicles seen in the cores.
Earlier studies described the geological and physiochemical characteristics of such habitats (Erba et al. 1987; Cita et al. 1985). Subsequent work using metagenomic techniques have documented a prosperous microbial community inhabiting the halocline of most of the Mediterranean brine lakes.DHAL interfaces in the Mediterranean Sea deeps act as hot spots of deep-sea microbial activity that significantly contribute to de novo organic matter production. Metabolically active prokaryotes are sharply stratified across the halocline interfaces in the various brine lakes and likely provide organic carbon and energy that sustain the microbial communities of the underlying salt-saturated brines. Since the metagenomic analysis of DHALs is still in its infancy, the metabolic patterns prevailing in the organisms residing in the interior of DHALs remains mostly unknown.
What is known is that the redox boundary at the brine/seawater interface provides energy to various types of chemolithic and heterotrophic communities. Aerobic oxidations of reduced manganese and iron, sulphide and intermediate sulphur species, diffusing from anaerobic brine lake interior to the oxygenated upper layers of the haloclines are highly exergonic processes capable of supporting an elevated biomass at DHAL interfaces (Yakimov et al., 2013). Depending on availability of oxygen and other electron acceptors bacterial autotrophic communities belonging to Alpha-, Gamma- and Epsilon-proteobacteria fix CO2 mainly via the Calvin-Benson-Bassham and the reductive tricarboxylic acid (rTCA) cycles, respectively.
Biomarker associations of the organics accumulating in the brine lakes define two depositional styles: typical marine and hypersaline (Burkova et al., 2000). For example, algal and bacterial biomarkers typical of saline environments were found in layers 0.60 to 0.75 m below the sediment surface in the Tyro Lake Basin, as well as standard marine indicators derived from pelagic fallout (“rain from heaven”). Saline indicators include; regular C-25 isoprenoids, squalane, lycopane, isolycopane, tetraterpenoid and tetrapyrrolic pigments, monoalkylcyclohexanes, tricyclic diterpanes, steranes, hopanes, bio- and geohopanes. According to Burkova et al. (2000), the saline organic signatures come from microbial mat layers, redeposited from a Messinian source into the sapropels of the modern depression. Alternatively, they may indicate the activities of a chemoautotrophic community, which flourishes at the halocline or around active brine vents.
As in the Orca Basin, the organic content of the bottom sediments of the Mediterranean brine pools is much higher than is found in typical deep seafloor sediment (Figure A). Anoxic hypersaline brines in Mediterranean brine lakes are highly sulphidic and among the most sulphidic bodies of water in the marine realm, with H2S concentrations consistently greater than 2-3 mmol (Henneke et al., 1997). The brine body below the Urania chemocline is more than 100 m thick and contains up to 11 mM hydrogen sulphide, making it the most sulphidic water body in the known marine realm. In combination with the sulphide are very high levels of methane both in and below the halocline (≈5.56 mM; Borin et al., 2009). In contrast, there is little to no H2S in the anoxic bottom brine of the Orca Basin (Table 1). There the iron concentration is 2 ppm, a value more than 1000 times higher than in the overlying Gulf of Mexico seawater. Such high levels of reducible iron in the Orca Basin are thought to explain the lack of H2S in the bottom brine and a preponderance of framboidal pyrite and extractable iron in the bottom sediments (Sheu, 1987).
Both the Orca Basin and the brine pools on the floor of the Mediterranean, show sulphate levels that can be more than twice that of the overlying seawater. Pyritic sulphur is the primary phase of inorganic reduced sulphur in the Tyro and Bannock basins, where it makes up 50-80% of the total sulphur pool. It is also present at the same levels in cores from the two basins, that is, around 250 µmol per gram dry weight (Henneke et al., 1997). Humic sulphur accounts for 17-28% of the total sulphur pool in the Tyro Basin and 10-43% in the Bannock Basin (Figure B). Sulphur isotope data show negative δ34S values for both pyritic sulphur, with δ34S = -19‰ to -39‰; and for humic sulphur, with δ34S= -15‰ to -30‰; indicating that both pyritic and humic sulphur originated from microbially produced H2S within the brine column. Marine sediment fills in all the active brine lakes of the Mediterranean Ridge range in age from Holocene to Late Pleistocene and are typically made up of turbidites interlayered with laminated intervals composed of alternating green gelatinous muds and grey reduced oozes.
Usually, the density of the bottom brine layer in the Bannock region is high enough to support a layer of finely dispersed organic debris, allowing substantial bacterial mats to float at the seawater-brine interface (halocline) and so form suspended deep mid-water bacterial mats (Erba, 1991). While the organics float on the oxic side of the halocline, they are subject to oxidation and biodegradation (Figure). Owing to the high density of the bottom brines, moving this floating organic material to the floor of density-stratified brine pools appears at first to be a tricky proposition. Bottom sediments in the Urania Basin, for example, contain very little particulate organic matter (>1% TOC). Yet, organic contents in the anoxic bottom muds beneath Tyro and Orca basins can be as high as 4-5% organic carbon (Figure A).
The propensity for organics to remain suspended at the halocline can be overcome when mineral crystals, such as pyrite, precipitate at the interface via diffusive brine mixing in combination with bacterial sulphate reduction. Newly formed crystals attach to organic matter floating at the halocline to create a combined density that carries the suspended pellicular organics to the pool floor. In such a brine pool scenario, the redox front that fixes pyritic sulphur occurs at the halocline, and not at its more typical marine position located at or below the sediment-seawater interface. The metal sulphide crystals then sink, carrying organic matter coats to form characteristic metal and organic-rich laminites on the floor of the anoxic brine lake. So, organic debris first created at the halocline can then accumulated as pellicle layers within the pyritic bottom muds (laminites).
Pellicular debris is also carried to the bottom during the emplacement of turbidites when the halocline is disturbed by turbid overflow (Figure; Erba, 1991). Hence, pellicular layers are typically aligned parallel to lamination, or are folded parallel to the sandy bases of the turbidite flows, or line up parallel to deformed layers within slumped sediment layers. Individual pellicle layers are 0.5 to 3 mm thick and dark greenish-grey in colour. Similar pellicular sheets cover the surface of, or are locked within, recent gypsum crystals recovered from bottom sediments of the Bannock area. This gypsum is growing today on the bottom of the Bannock Basin, atop regions about the brine pool margin that are directly underlain by dissolving Miocene evaporites (Corselli and Aghib, 1987; Cita 2006). Other than the Dead Sea, it is one of the few modern examples of a deepwater evaporite, but its seepage-fed genesis means it is a poor analogue for deepwater basinwide salt units.
The community of bacteria and archaea flourishing at the halocline in sulphidic marine brine pools on the deep Mediterranean floor is quite diverse, mostly independent of primary production in the euphotic zone, with the number of identified unique halobacteria and haloarchea species expanding every year (Albuquerque et al., 2012). Bottom brine in the Urania brine lake has a salinity of 162‰, and the chemocline of the brine lake is some 3490m below the ocean surface, so only a minimal amount of phytoplanktonic organic carbon ever reaches the 20m thick chemocline. Yet the oxic waters of the upper part of the chemocline support a rich bacterial and archaeal assemblage in and below the interface between the hypersaline brine and the overlying seawater, much like the chemosynthetic bacterial community associated with the halocline in Lake Mahoney (Sass et al., 2001; Borin et al., 2009).

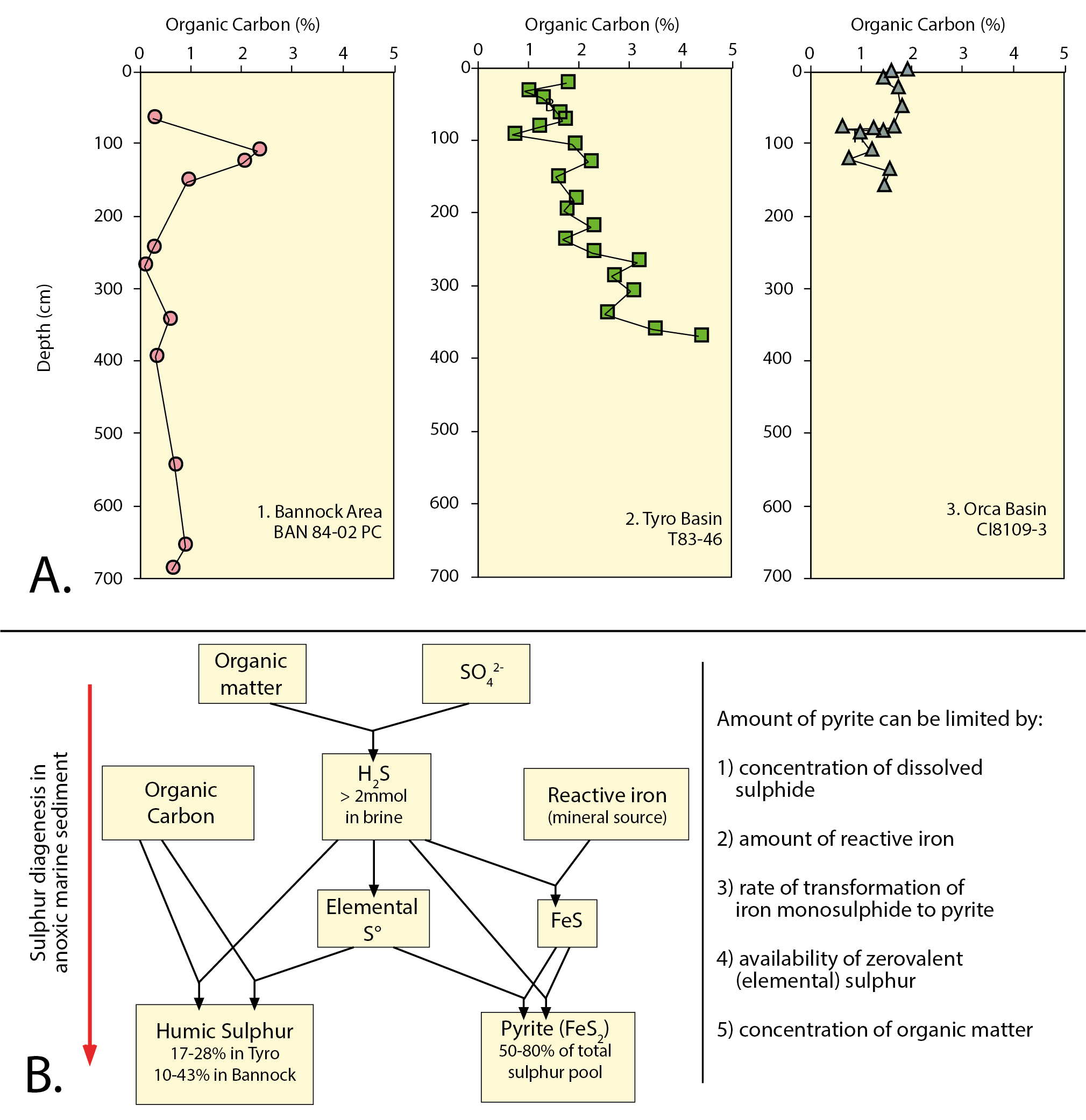

Neither Tyro nor Bannock Basin bottom sediments show a significant correlation between pyritic sulphur and the organic carbon in the bottom sediments, suggesting predominantly syngenetic pyrite evolution in bottom sediments of these brine lakes (Henneke et al., 1997). That is, both pyritic and humic sulphur preserved in the bottom sediments formed either in the lower water column or at the sediment-brine interface, not in the sediment itself. Ongoing diagenetic processes within the bottom sediments only form an additional 5% of the total pyrite. Van der Sloot et al. (1990) clearly showed that metal sulphides, as well as organics and other minerals, precipitate at the brine-seawater interface in the Tyro Basin, as they do in the Orca Basin. They found extremely high concentrations of Co (0.015%), Cu (1.35%) and Zn (0.28%) in the suspended matter at the halocline. These high Co, Cu and Zn particulate concentrations correspond to sharp increases in dissolved sulphide across the interface (a redox front), and indicate precipitation of metal sulphides at the interface. Humic sulphur in the bottom sediments correlates with the pyritic sulphur distribution and is related to the amount of gelatinous pellicle derived from bacterial mats growing at the halocline between oxic seawater and bottom brine (Erba, 1991, Henneke et al., 1997).
Additionally, the degree of pyritisation in the sediments (DOP ≈ 0.62) indicates that present-day pyrite formation is limited by the reactivity of Fe in the Bannock and Tyro basins and not by the availability of organic matter, the latter being the process that limits pyrite formation in most normal marine settings (Figure). The degree of pyritisation (DOP) is defined as [(pyritic iron)/(pyritic iron + reactive iron)]. Raiswell et al. (1988) showed that DOP in ancient sediments can distinguish anoxic from normal-marine sediments. Anoxic sediments show DOP values between 0.55 and 0.93, while normal marine sediments have DOP values less than 0.42. The DOP levels in the Bannock and Tyro basins confirm observations made in ancient anoxic sediments. Thus, although the Tyro and Bannock basin brines differ in their major element chemistry, reflecting a different salt source, their reduced sulphur species chemistry appears to be similar, but is significantly different from standard marine systems and capable of precipitating metal sulphides above the sediment surface.
Sulphide concentration in the Urania Basin increases from 0 to 10 mM within a vertical interval of 5 m across the interface (Figure A). Within the halocline, the total bacterial cell counts and the exoenzyme activities are elevated, and biogenic activity continues below the halocline. Bacterial sulphate reduction rates measured in this layer are ≈ 14 nmol SO4 cm-3 d-1 and are among the highest in the marine realm. They correspond to the zone of maximum bacterial activity in the chemocline (Figure 11b). Particulate organic content is 15 times greater than that in the overlying normal-marine waters. A similar focus of microbial occurrence (bacterial and archaeal) is seen at the halocline in l’Atalante Basin and is probably typical of all chemocline layers in the various Bannock brine lakes (Yakimov et al., 2007.
Employing eleven cultivation methods, Sass et al. 2001 isolated a total of 70 bacterial strains from the chemocline in the Urania Basin (Figure). The community of bacteria and archaea flourishing at the halocline in sulphidic marine brine pools on the deep Mediterranean floor is quite diverse, mostly independent of primary production in the euphotic zone, with the number of identified unique halobacteria and haloarchea species expanding every year (Albuquerque et al., 2012). Bottom brine in the Urania brine lake has a salinity of 162‰, and the chemocline of the brine lake is some 3490m below the ocean surface, so only a minimal amount of phytoplanktonic organic carbon ever reaches the 20m thick chemocline. Yet the oxic waters of the upper part of the chemocline support a rich bacterial and archaeal assemblage in and below the interface between the hypersaline brine and the overlying seawater, much like the chemosynthetic bacterial community associated with the halocline in Lake Mahoney (Sass et al., 2001; Borin et al., 2009). ). These strains were identified as the flavobacteria, Alteromonas macleodii, and Halomonas aquamarina.
All 70 strains could grow chemo-organoheterotrophically under oxic conditions. Twenty-one of the isolates could grow both chemo-organotrophically and chemo-lithotrophically (decomposers and fermenters). While the most probable numbers in most cases ranged between 0.006 and 4.3% of the total cell counts, an unusually high value of 54% was determined above the chemocline with media containing amino acids as the carbon and energy source. Subsequent detailed work focused on the various layers that make up the Urania halocline showed the high sulphide levels in and below the halocline, make it a mecca for bacterial sulphate reducers, as do high levels of methane for the methanogens (Figure B; Borin et al., 2009). Microbial abundance showed a rapid increase by two orders of magnitude from 3.9 x 104 cells mL-1 in the deep oxic seawater immediately above the basin, up to 4.3 x 106 cells mL-1 in the first half of interface 1.
Although less pronounced than in the first chemocline, a second increase in microbial counts occurred in interface 2. Deceleration of falling particulate organic matter from the highly productive interface 1, is probably responsible for stimulating microbial growth and hence cell numbers in interface 2. That is, compared to the overlying seawater column, bacterial cell numbers increased up to a hundred-fold in interface 1 and up to ten-fold in interface 2. This is a consequence of elevated nutrient availability, with higher amounts in the upper interface where the redox gradient was steeper.
Bacterial and archaeal communities, analysed by DNA fingerprinting, 16S rRNA gene libraries, activity measurements, and cultivation, were highly stratified within the various layers of the chemocline and metabolically more active along the different chemocline layers, compared with normal seawater above, or the uniformly hypersaline brines below. Detailed metagenome analysis of 16S rRNA gene sequences revealed that in both chemocline interfaces, the e- and d-Proteobacteria were abundant, predominantly as sulphate reducers and sulphur oxidisers, respectively (Figure 11b). The only archaea in the first 50 cm of interface 1 were Crenarchaeota, which consist of organisms having sulphur-based metabolism, and hence could play a role in sulphur cycling in the upper interface. In the deepest layers of the basin below the halocline, MSBL1, putatively responsible for methanogenesis, dominated among archaea (Figure B). The work of Borin et al. (2009) illustrate that a well-adapted and complex microbial community is thriving in the Urania basin’s extreme chemistry, The elevated biomass centred on the halocline is driven mainly by sulphur cycling and methanogenesis.
Similarly, detailed studies of interface-controlled chemosynthetic communities in other Mediterranean DHALs have been documented in Lake Thetis (Ferrer et al., 2012; Oliveri et al., 2013) and Lake Medee (Yakimov et al., 2013). Medee Lake is the largest known DHAL on the Mediterranean seafloor and has two unique features: a complex geobiochemical stratification and an absence of chemolithoautotrophic Epsilonproteobacteria, which usually play the primary role in dark bicarbonate assimilation in DHALs interfaces worldwide. Presumably, because of these features, Medee is less productive and exhibits a reduced diversity of autochthonous prokaryotes in its interior brine layers. Indeed, the brine community almost exclusively consists of the members of euryarchaeal and bacterial KB1 candidate divisions which a ubiquitous in the DHAL biota worldwide. In Medee, as elsewhere, they are thriving on small organic molecules produced by a combination of degraded marine plankton and moderate halophiles living in the overlying stratified brine column.
Outside off the microbial makeup of DHAL communities, one of the more exciting discoveries in the brine lakes of the Mediterranean ridges is the likely discovery of multicellular life of the Phylum Loricifera ("Beard shells) capable of living and reproducing in the absence of oxygen. Loricifera (from Latin, lorica, corselet (armour) + ferre, to bear) is a phylum made up of very small to microscopic marine cycloneuralian sediment-dwelling animals with 37 described species. Their size ranges from 100 µm to ca. 1 mm and individuals are characterised by a protective outer case called a lorica and by their habitat, which is in the spaces between marine sediment particles or hypersaline bottom brines. The phylum was first discovered in tidal sediments in 1983 and is among the most recently discovered groups of Metazoans. Individuals attach themselves quite firmly to the sediment substrate, and hence the phylum remained undiscovered for so long.
In 2010, viable specimens of Spinoloricus cinziae, along with two other newly discovered species, Rugiloricus nov. sp. and Pliciloricus nov. sp., were found in the sediment core from below the anoxic L'Atalante basin of the Mediterranean Sea (Danovaro et al., 2010, 2016). Their living space is wholly anoxic and, due to the activity of sulfate-reducers, contains sulphide at a concentration of 2.9 mM. The species cellular innards are adapted for a zero-oxygen life as their mitochondria appear to act as hydrogenosomes, organelles which already provide energy in some anaerobic single-celled creatures known. Before their discovery, living and reproducing exclusively in an oxygen-free setting was thought to be a lifestyle open only to viruses and single-celled microorganisms. The ability of these anoxic brine-dwelling creatures to live solely in an oxygen-free environment is questioned still by other workers (Bernhard et al., 2015).
The Atlantis II Deep marks the northern-most end of the Atlantis II Shagara- Erba Trough section, hosting numerous sub-deeps like the Discovery and Aswad Deep (Figure). In general, the Atlantis II Deep area has a smoother bathymetric character than the Thetis-Hadarba-Hatiba and Shagara-Aswad-Erba Troughs, due to massive inflow of salt and sediments from nearly all sides into the deep.
In the Atlantis II deep, Siam et al. (2012) identified metagenomic archaeal groups in high relative abundance at the bottom of a sediment core from the Atlantis II Deep, which, as in the Kebrit Deep, are another case of the dominance of Archaea. Their results showed that the dominant archaeal inhabitants in the bottom layer (3.5 m depth to the seafloor) included Marine Benthic Group E, and the archaeal ANME-1 ( anaerobic methane consumers metagenome. The presence of the latter was also confirmed in a study of a barite mound in the Atlantis II Deep (Wang et al., 2015), but the former was not detected in this later study. In metagenomic studies of the Atlantis II sediments, Cupriavidus (Betaproteobacteria) and Acinetobacter (Gammaproteobacteria) are the most abundant species in the surface layer (12 cm) and the bottom layer (222 cm) of a sediment core obtained in 2008. Both bacterial species were not the dominant inhabitants in the ABS core analysed in the present study.
Due to tremendous differences between brine water and sediment chemistry in the Deep, their microbial communities differ remarkably. The lower convective layers of the Atlantis II and Discovery brine pools are dominated by Gammaproteobacteria, while Alphaproteobacteria and Betaproteobacteria are the major bacterial groups in the upper layers of Atlantis II sediment (Bougouffa et al., 2013). All the above discrepancies in composition of microbial communities in the two Deeps were probably caused by 1) primer selection for amplification of rRNA genes; 2) different microenvironments in the sampling sites; 3) taxonomic assignment criteria employed by various studies; 4) different experimental procedures, and 5) sampling bias due to low biomass in sampling sites.
Except for these potential problems, the study demonstrates the profound changes in microbial communities in deep-sea hydrothermal sediment under the influence of extensive mineralisation process. Many of the groups detected in the S-rich Atlantis II section are likely to play a dominant role in the cycling of methane and sulphur due to their phylogenetic affiliations with bacteria and archaea involved in anaerobic methane oxidation and sulphate reduction in the Kebrit Deep on the deep floor of the Red Sea, an assemblage of halophilic archaea and bacteria similar to that of the DHALs of the Mediterranean Deeps flourish in hypersaline waters below the chemocline (Figure). Kebrit Deep (24°44’N, 36°17’E) measures 1 by 2.5 km, with a maximum depth of 1549 m and is one of the smallest salt allochthon-associated brine-pools of the Red Sea. It is located around 300 km northwest the well-known metalliferous Atlantis II deep. The Kebrit Deep is filled by an 84 m thick, anaerobic, slightly acidic brine lake (pH approximately 5.5) with a salinity of 260‰ and a temperature of 23.3°C (Antunes et al., 2011). The brine has a high gas content that is made up mainly of CO2, H2S, small amounts of N2, methane and ethane, with remarkably high quantities of H2S (12–14 mg S l-1; Hartmann et al., 1998).
The presence of sulphur is self-evident by the strong, characteristic odour present in brine samples, and hence the name of the basin (Kebrit is the Arabic word for sulphur). Like the Atlantis II deep there are impregnated massive sulphides accumulations on the floor of Kebrit Deep. Kebrit samples are porous and fragile and consist mainly of pyrite and sphalerite. Before gene sequencing studies, sulphur isotope values provided substantial evidence for biogenic sulphate reduction being involved in sulphide-forming processes in Kebrit Deep.
They are linked to bacterial methane oxidation and sulphate reduction centred on the brine-seawater interface (see Chapter 15 in Warren 2016 for metallogenic details). Most of the archaeal metagenomic sequences in Kebrit Deep cluster within the Thermoplasmatales (Marine group II, Marine Benthic group D, and the KTK-4A cluster) among the Euryarchaeota, while the remaining sequences do not show high similarity to any of the known phylogenetic groups (Figure). One of these sequences was shown to cluster with the later-described SA2 group, while another (accession number AJ133624) clusters together with two gene sequences from L’Atalante Basin waters, defining a novel deeply-branching phylogenetic lineage within the Crenarchaeota.
Gene sequencing studies on water samples from the brine-seawater interface in the Kebrit deep retrieved sequences from the KB1 group, as well as Clostridiales (mostly Halanaerobium), Spirochetes (ST12-K34/MSBL2 cluster), Epsilonproteobacteria and Actinobacteria, but no archaeal sequences were detected in these interface samples (Antunes et al.,2011).
Under strictly anaerobic culture conditions, novel halophiles were isolated from samples of these waters and belong to the halophilic genus Halanaerobium. They are the first representatives of the genus obtained from deep-sea, anaerobic brine pools (Eder et al., 2001). Within the genus Halanaerobium, they represent new species that grow chemo-organotrophically at NaCl concentrations ranging from 5 to 34%. They contribute significantly to the anaerobic degradation of organic matter, which formed at the brine-seawater interface and is slowly settling into the bottom brine. Similarities in the makeup of the Archaeal population, tied to similar metabolic process sets at the brine interface across various deep seafloor brine lakes in the Gulf of Mexico, the Mediterranean and the Red Sea.
Compared with other hydrothermal sediments around the world, the Atlantis II hydrothermal field is unique in that sulphur and nitrogen oxides are low in the pore water of the sediments. This probably leads to lack of ANME. It seems different geochemical conditions of hydrothermal marine and cool seep sediments across the deepsea sub-seafloor resulted in various niche-specific microbial communities.
The Dead Sea can be considered a continental counterpart of a marine DHAL, but in a setting where there is no overlying body of oxygenated marine water. Instead, when holomictic, the Dead Sea brine mass is in direct contact with the atmosphere. The Dead Sea provides one of nature’s supreme tests of survival of life. The negative-water balance in the Dead Sea hydrology over recent decades resulted in ever-rising salinity and divalent-cation ratios, cumulating in the current highly drawdown situation (See Warren 2016, Chapter 4 for a summary of the relevant hydrological evolution. Today the brines have reached a salinity level of more than 348 /l total dissolved salts, with a high ratio of (Ca + Mg) to Na. Water activity (Aw, a measure based on the partial pressure of water vapour in a substance, and correlated with the ability to support microorganisms) of the Dead Sea is extremely low (Aw ≈ 0.669), even lower than that of saturated-NaCl solution (Aw ≈ 0.753±0.004), and is thus unbearable for most life forms (Kis-Papo et al., 2014).

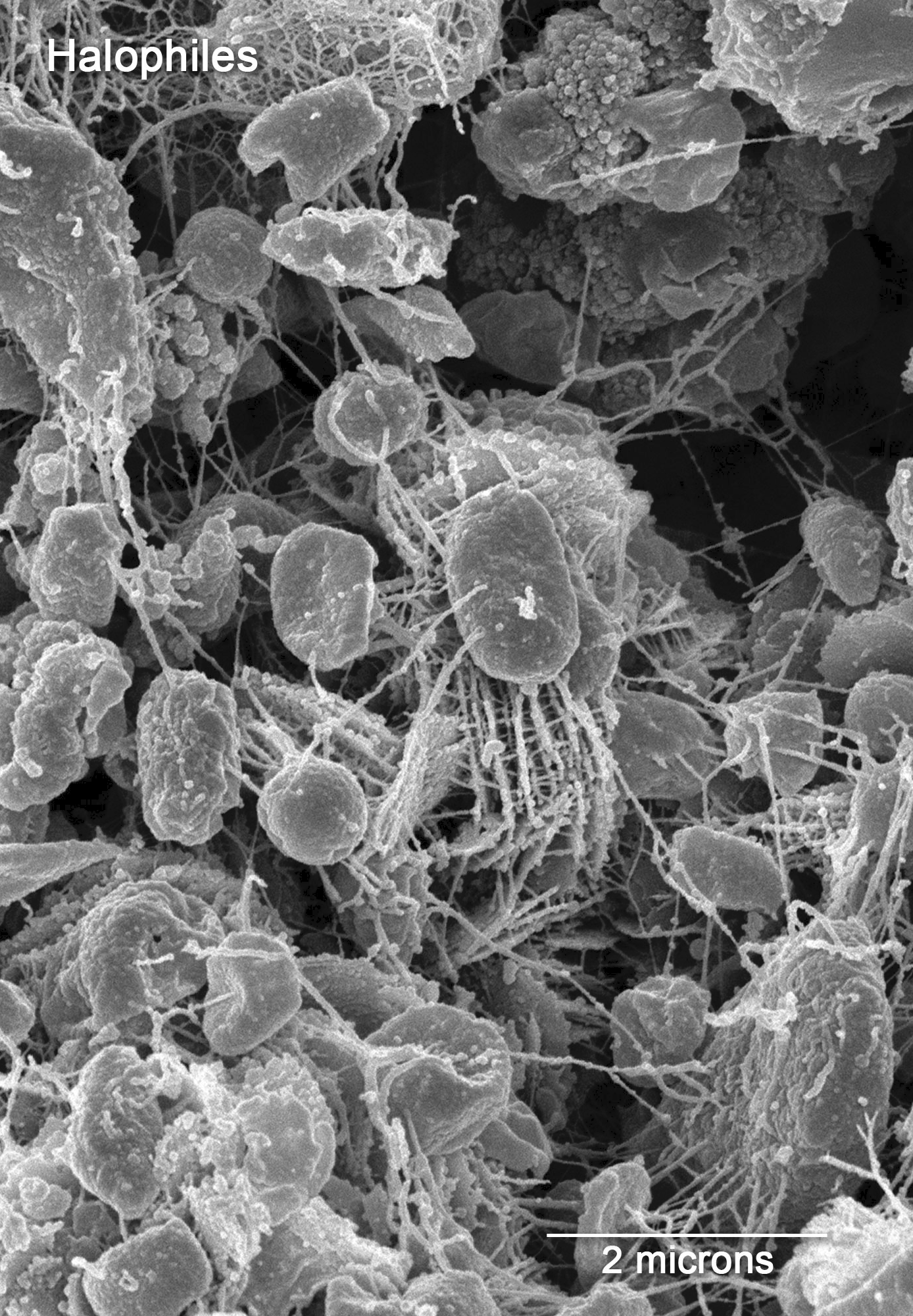

Nevertheless, several halobacteria (Archaea), one green algal species (Dunaliella parva), and several fungal taxa withstand these extreme conditions(Kis-Papo et al., 2014). Most organisms in the Dead Sea survive in fresher-water spring refugia or in their dormant stages, and only revive when salinity is temporarily reduced during occasional massive flooding events (Ionescu et al., 2012. The effects of freshening on biomass in stratified brine columns that are supersaline, not mesohaline, is clearly seen in the present “feast or famine” productivity cycle of the Dead Sea (Warren, 2011; Oren and Gurevich, 1995; Oren et al., 1995; Oren 2005). Dunaliella sp, a unicellular green alga variously described in the past as Dunaliella parva or Dunaliella viridis, is the sole primary producer in the Dead Sea waters. Then there are several types of halophilic archaea of the family Halobacteriaceae (prokaryotes) which consume organic compounds produced by the algae. Two distinct periods of organic productivity (feast) have been documented in the upper lake water mass since the Dead Sea became holomictic in 1979 (Oren, 1993, 1999).

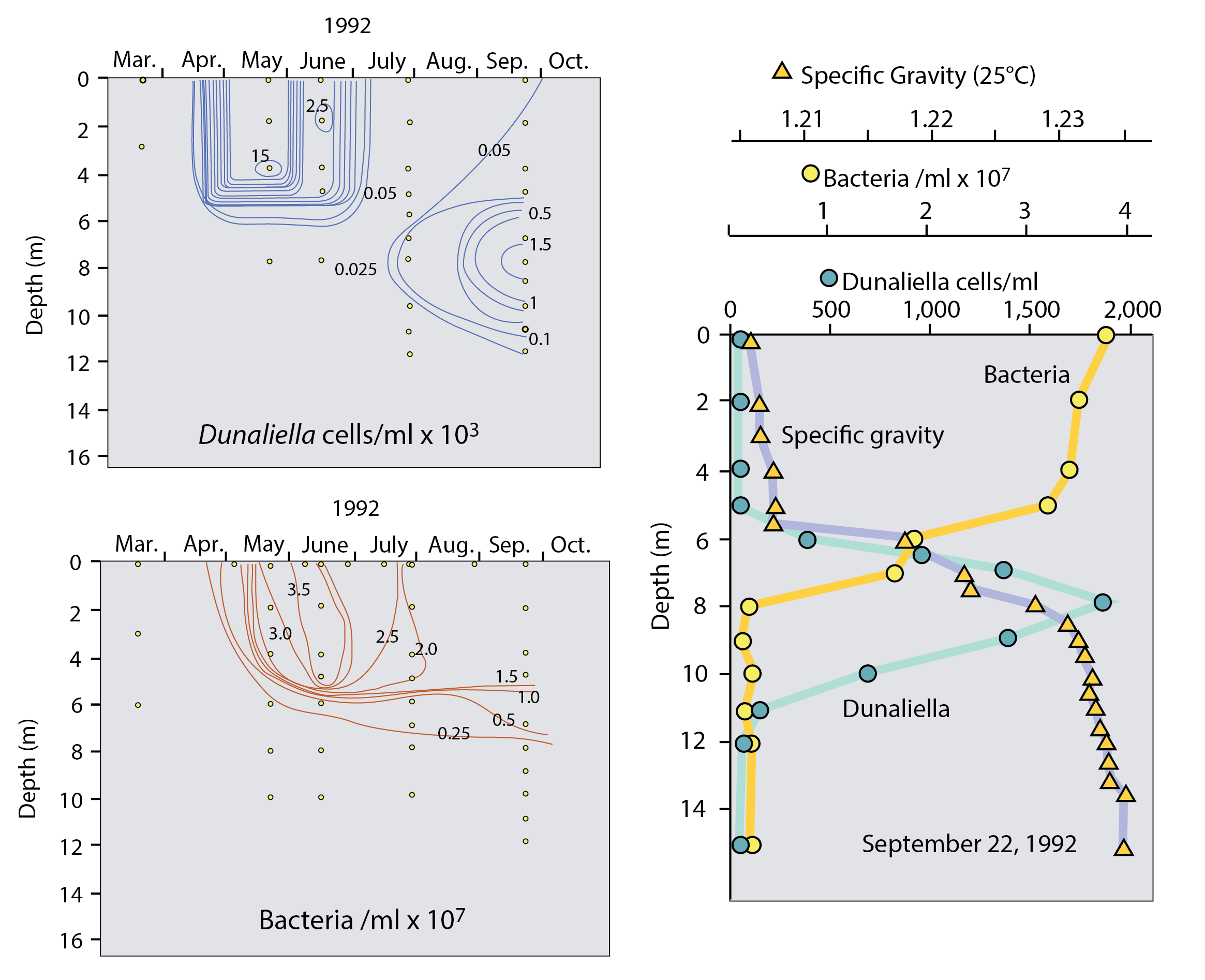

Well documented mass developments of Dunaliella sp. (up to 8,800 cells/ml) began in the summer of 1980 following dilution of the saline upper water layers by the heavy winter rains of 1979-1980 Figure A, B). The rains drove a rapid rise of 1.5 metres in lake level and an increase in the level of phosphates in the lake’s surface waters (Figure C). This bloom was quickly followed by a blossoming in the numbers of red halophilic archaea (2 x 107 cells/ml), Dunaliella numbers then declined rapidly following the complete remixing of the water column and the associated increase in salinity of the upper water mass. By the end of 1982, Dunaliella had disappeared from the main surface water mass. Archaeal numbers underwent a slower decline. During the period 1983-1991, the lake was holomictic, halite-saturated and no Dunaliella blooms were observed. Viable halophilic and halotolerant archaea were probably present in refugia about the lake edge during this period but in meagre numbers. Then heavy rains and floods of the winter of 1991-1992 raised the lake level by 2 metres and drove a new episode of meromictic stratification as the upper five metres of the water column was diluted to 70% of its normal surface salinity (Figure 14d).
High densities of Dunaliella reappeared in this upper less saline water layer (up to 3 x 104 cells/ml) at the beginning of May 1992, rapidly declining to less than 40 cells/ml at the end of July 1992 (Figure 15). An associated bloom of heterotrophic haloarchaea (3 x 107 cells/ml) continued past July and continued to impart a reddish colour to the surface and nearsurface waters. Much of the archaeal community was still present at the end of 1993, but the amount of carotenoid pigment per cell had decreased two- to three-fold between June 1992 and August 1993 (Oren and Gurevich, 1995). A remnant of the 1992 Dunaliella bloom maintained itself at the lower end of the pycnocline at depths between 7 and 13 m (September 1992- August 1993), perhaps chasing nutrients rather than light. Its photosynthetic activity was low, and very little stimulation of archaeal growth and activity was associated with this algal community (Figure 15).
It seems that once stratification ends and the new holomictic period begins, the remaining Archaeal community, which was primarily restricted to the upper water layers above the halocline, spreads out more evenly over the entire upper water column until it too dies out. No substantial algal and archaeal blooms have developed in the Dead Sea since the winter floods of 1992-1993 until today. The colouration of the Dead Sea waters from the initial algal bloom allowed Oren and Ben Yosef (1997) to use Landsat images, collected in May 1991 and in April and June 1992, to plot the development of the Dunaliella sp. bloom. In contrast, the carotenoids of the subsequent archaeal bloom did not produce a recognisable spectral signal in the images. The April 1992 image obtained at the time of the onset of the algal bloom, before its lake-wide spread, suggests it originated in shallow areas near the shore of the lake, where light penetrated to the bottom of the brine column. It was probably instigated by resting cells that had survived in near-surface sediment of the shallow lake margin and were reinvigorated by the combination of lowered salinities and light.

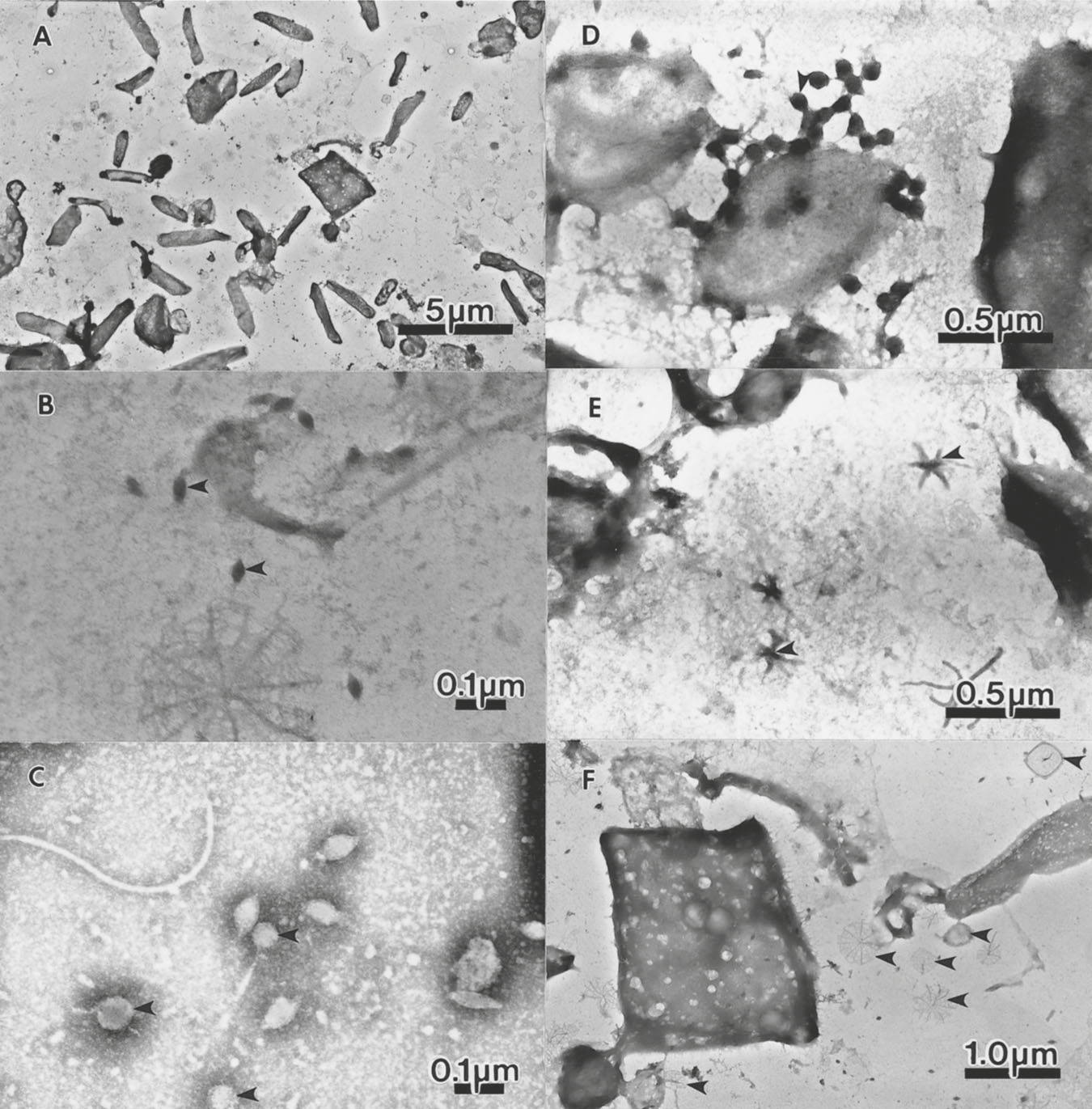

The ultimate decline of the lake-wide bloom of halophilic archaea in the Dead Sea appears to be related to viral infection (Oren et al., 1997). For example, in October 1994, during the decline of the halophilic archaeal population in the upper 20 m of the Dead Sea water column, there were between 0.9 and 7.3 x 107 virus-like particles per ml of brine. Virus-like particles outnumbered archaea by a factor of 0.9-9.5 (averaging 4.4). Water samples collected during 1995 contained low numbers of both archaea and virus-like particles (1.9-2.6 x 106 and 0.8-4.6 x 107 ml-1, respectively in April 1995), with viral numbers sharply declining afterwards (less than 104 ml-1 in November 1995 - January 1996). Oren et al. (op cit.) suggest that viruses play a significant role in the decline of halophilic archaeal communities in many other hypersaline environments where protists and metazoa are absent.

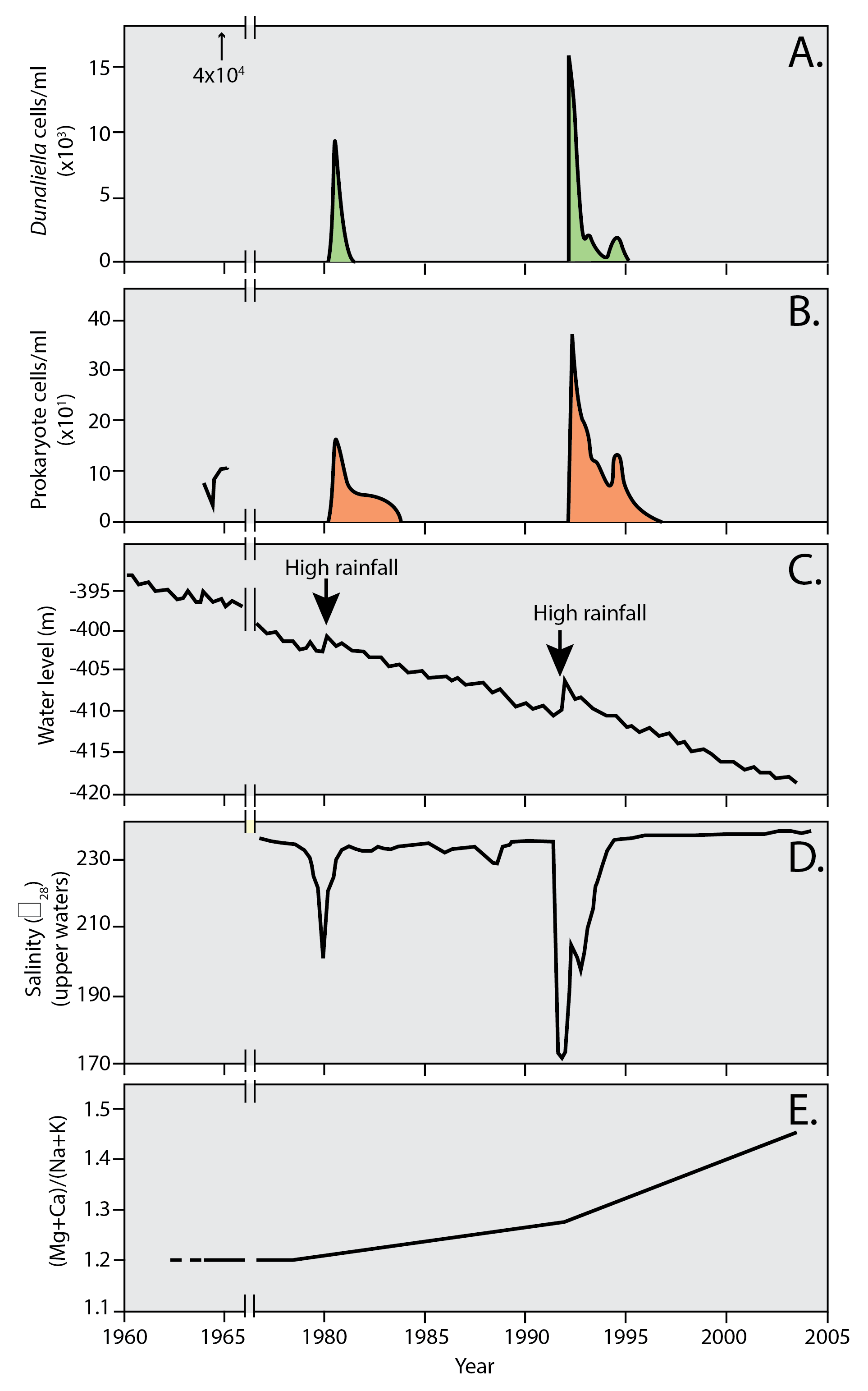

Until today (2018), the last archaeal bloom was observed in 1992–1995 and was triggered by dilution of the upper waters by rain floods. Culture-independent metagenome studies showed that that bloom was dominated by a single, yet-uncultured phylotype, while the small residual population 15 years later was highly diverse (Oren, 2015). Large amounts of bacteriorhodopsin were present in the bloom of Archaea that developed in the lake in 1980–1981, but no rhodopsin genes were detected in the 1992 bloom (see Warren 2016, chapter 9, for a discussion of the photo-significance off these two pigments). Thus, bacteriorhodopsin probably did not play a role during that bloom; however, novel bacteriorhodopsin and sensory rhodopsin genes were found in samples collected in 2007 and 2010.

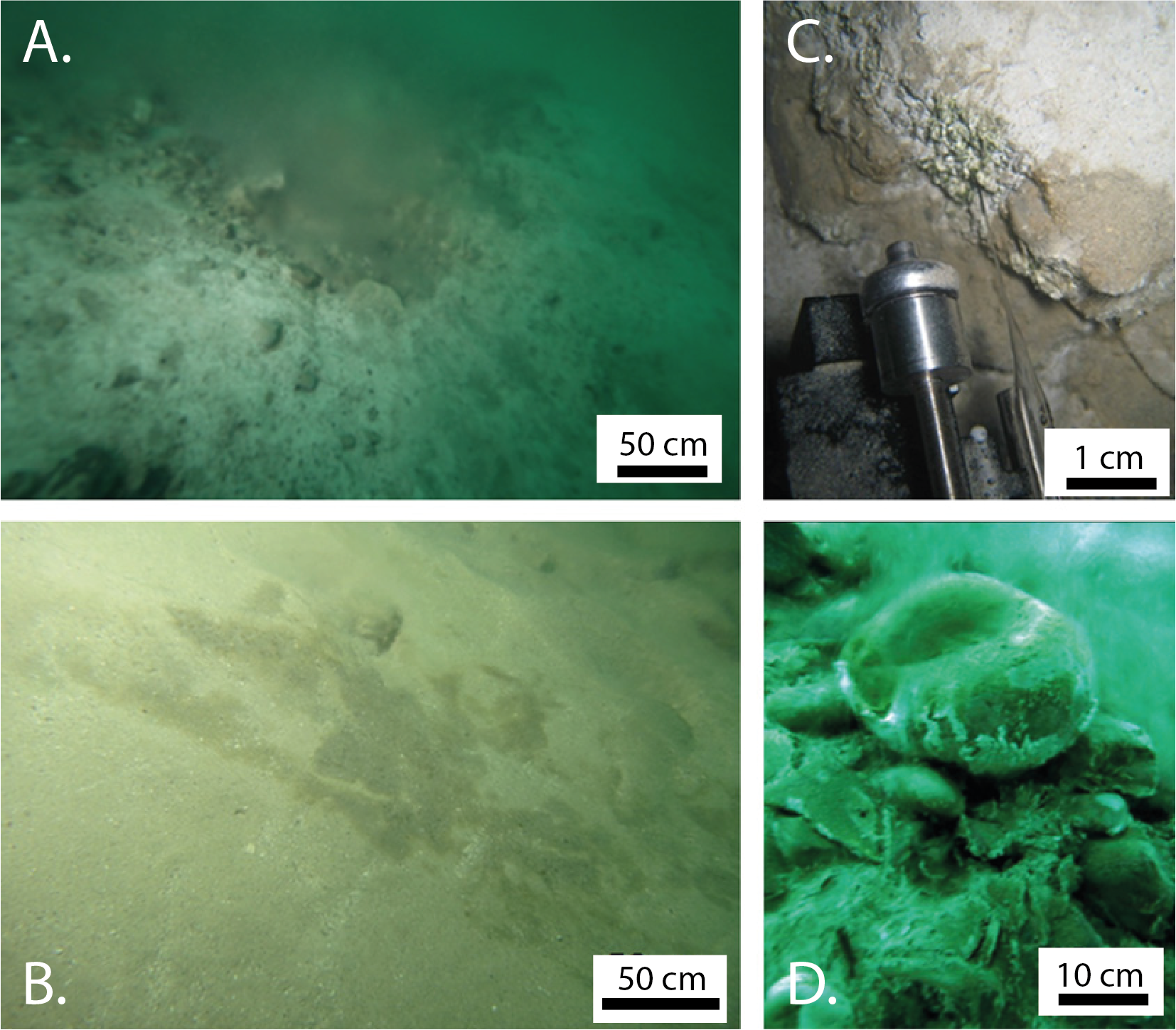

Underwater freshwater to brackish springs are likely refugia to much of the life in the Dead Sea and are inhabited by interesting microbial communities including chemolithotrophs, phototrophs, sulphate reducers, nitrifiers, iron oxidisers, iron reducers, and others (Figure A-D). The springs also host numerous cyanobacterial and diatomaceous mats with sulfate-reducers near the base of the food chain (Oren et al., 2008; Ionescu et al., 2012). Sequences matching the 16S rRNA gene of known sulphate-reducing bacteria (SRB) and sulphur oxidising bacteria (SOB) were detected in all microbial mats centred on freshwater springs as well as in the Dead Sea water column (Häusler et al., 2014). Generally, sequence abundance of SRB and SOB was higher in the microbial mats than in the Dead Sea, indicating that the conditions for both groups are more favourable in the spring environments. The springs also supply nitrogen, phosphorus and organic matter to the Dead Sea microbial communities. Due to frequent fluctuations in the freshwater flow volumes in the springs and local salinity, microorganisms that inhabit these springs must be capable of withstanding large and rapid salinity fluctuations, and the population proportions vary according to the spring chemistry (Ionescu et al., 2012).Dead Sea GeologyDead Sea Potash
In most DHALs, the rate of vertical mixing across the extreme density gradients between brine and overlying seawater is extremely slow (Steinle et al., 2018). Hydrochemically, depending on the nature of the dissolving salt supply, seawater and DHAL brines can differ sharply in their solute composition, in particular, in the concentrations of the critical electron donors and acceptors so crucial to the functioning of life. In that a narrow (1– 3 m) chemocline (halocline) forms a transition zone between the two quite-different hydrologies that define a DHAL water column, microbial ecologies have evolved to inhabit particular portions of the halocline as well as the brine lake and the normal marine deepwater columns (Figure). In contrast to the overlying seawater, the bottom brines are anoxic but contain electron acceptors other than oxygen, most importantly sulphide and methane. Hence, hotspots of chemosynthetic (not photosynthetic) activity have evolved that flourish at these brine-seawater interfaces, where the principal reactions at the base of the food chain are anoxic and encompass sulphate reduction, methanogenesis, and microbial heterotrophy. Highly-adapted microbial life continues to function even in the most extreme hypersaline conditions found in some DHALs, such as in Lake Kryos where MgCl2-rich chemistries dominate, or in the Atlantis II Deep where there is a combination of extreme temperatures and salinities.
In the Gulf of Mexico, an endosymbiotic megafauna constructs methanogenically-cemented carbonate biostromes as lake-fringe mussel-dominated communities or polychaete forests atop cool water H2S seeps. Both the microbial population and the megafauna that exploits this chemosynthetic base to the food chain flourish best in seafloor regions defined by the long-term focused escape of methane or H2S (Figure). Cool-seep brine lakes were first discovered in the Gulf of Mexico in the early 1980s, but similar hydrocarbon-dependent cool-seep communities with their own megafauna accumulations are now documented in other parts of the world characterised by the naturally-focused escape of hydrocarbons to the seafloor (for example, atop cool-water brine seeps along the slope and rise of the east and west coasts of North America and in the Black Sea.
The relative long-term stability of cool-seep ecology, tied to the chemical stability of the niche, is seen when lifespans of hydrothermal endosymbiotic communities living chemosynthetically about thermal vents along mid-oceanic ridges are compared to Gulf of Mexico communities. Endosymbiotic polychaete and clam species in the brine lakes and seeps of the Gulf of Mexico can live for a hundred or more years, while lifespans in similar endosymbiotic polychaete and clam species in hydrothermal ridges communities are less than 30-50 years.
Moving onshore, into the partial analogue offered by the salt-karst fed Dead Sea depression, we see Dead Sea biomass is subject to much shorter-term changes in the salinity and nutrient content of its uppermost water mass (Feast and Famine cycles as documented in Warren, 2011, 2016 Chapter 9). The freshening water mass above a lake halocline is transient in the current longterm holomictic hydrology of the Dead Sea (see Warren 2016 chapter 4 for details). The changes in surface water salinity are tied to the periodic influx of a freshened upper water mass. These climatically-driven fluctuation to the the extent and activity of the halotolerant and halophilic community in the upper water mass, and the Feast or Famine responses of the Dead Sea biota, are different to the longterm niche stability created by the presence of a perennial oceanic water mass over a salt-karst induced halocline and brine lake in a DHAL sump on the deep seafloor. The latter is continually resupplied brine and chemosynthetic nutrients via the dissolution and focusing effect of the underlying salt sheet. The hydrology of a DHAL system only shuts down when all the mother salt is dissolved or cut off.
Accordingly, rather than the hundreds of years of longterm growth (albeit at relatively slow metabolic rates) that we see in a DHAL, in the Dead Sea we see that freshening facilitates a rapid spread of a halotolerant alga (Dunaliella sp.) and associated halophilic microbes and viruses. The propagation and persistence of a large biomass pulse in the Dead Sea is measured in time frames of months. The halotolerant photo-synthesisers can only spread out from long-term refugia communities once the surface salinities fall to levels that allow the photosynthesising base too the Lake food chain inhabit fresher water springs regions about the lake margins. Comparison to the DHAL and Dead Sea communities underlines how life will evolve into any neighbourhood, even if conditions are extremely challenging.
